?Honeycomb Ceramic Catalyst carrier

?????????的

Cordierite | Alumina | Corundum | Mullite | Silicon Carbide | Zirconia


Chemical Gas & Liquid Treatment


Application: Application: Petrochemical, Pharmacy Industrial & Wast incineration


Ceramic honeycomb catalyst carrier use the properties of honeycomb ceramic: large specific surface area, small airway resistance, neat and strong, and are coated with active rare earth metals, transition metals, precious metals on the surface, after reduction firing to obtain a range of practical performance, are widely used in petrochemical, waste incineration, paint and paint charter waste gas treatment, industrial waste gas and waste water treatment.

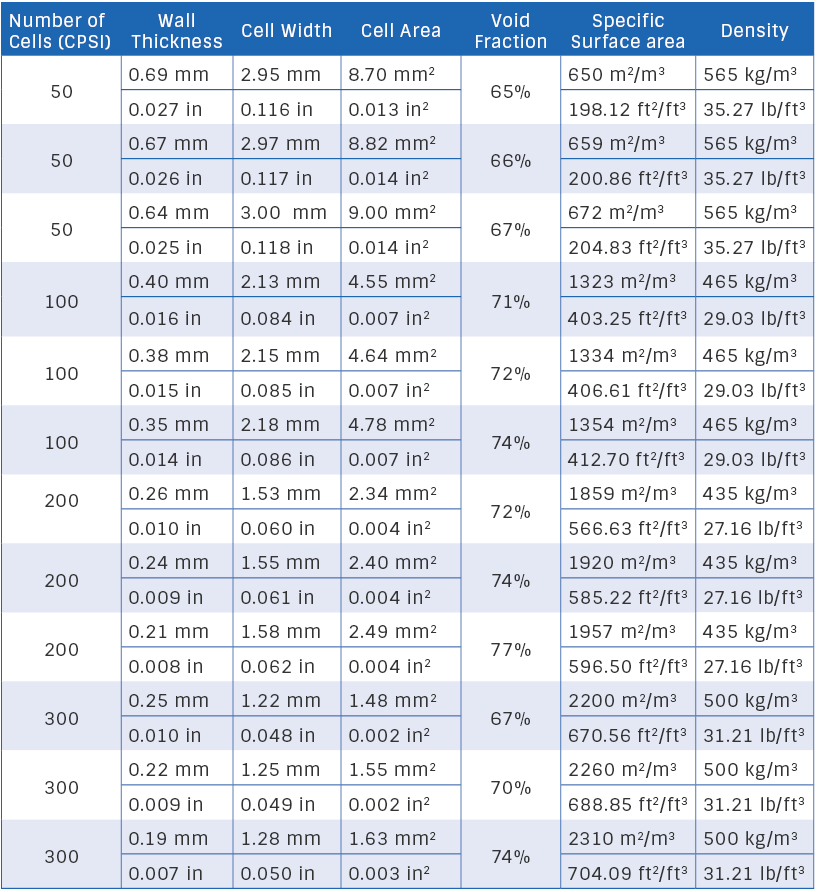

50 - 300 CPSI Catalyst Carrier
Specification

Specification

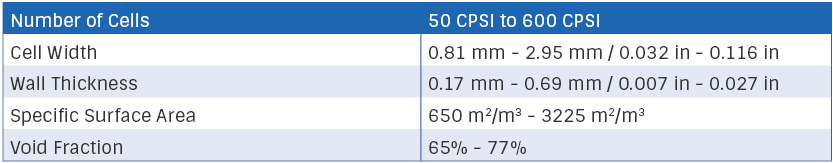

?? Number of Cells                – 50 CPSI to 600 CPSI

? Cell Width                       – 0.81 mm - 2.95 mm / 0.032 in - 0.116 in

? Wall Thickness                – 0.17 mm - 0.69 mm / 0.007 in - 0.027 in

? Specific Surface Area                – 650 m2/m3 - 3225 m2/m3

? Void Fraction               – 65% - 77%

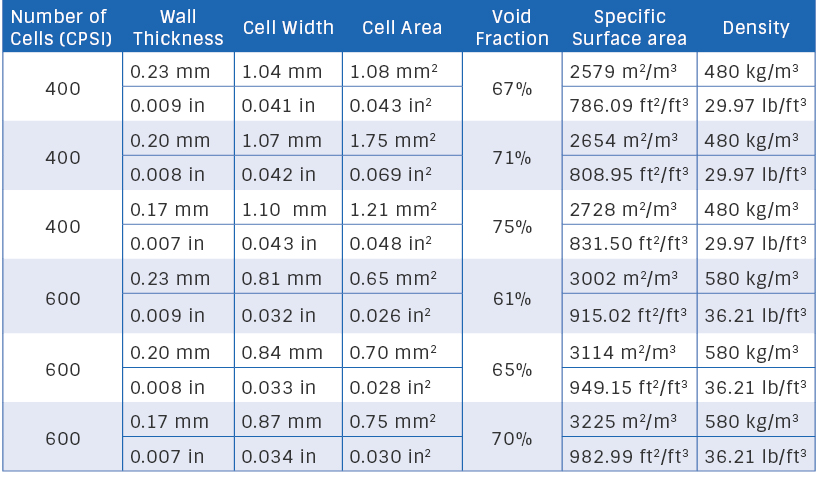

600 - 400 CPSI Catalyst Carrier?
Specification

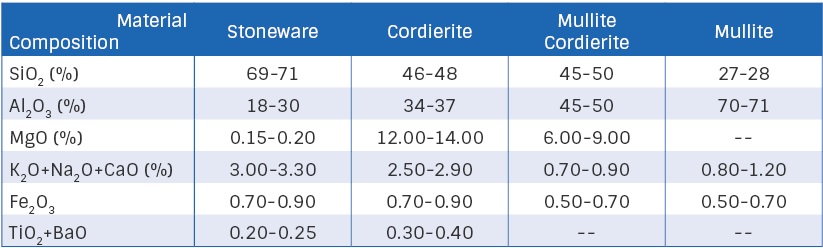

Chemical Composition
Please note: Preceding chemical composition is standard to all cellular honeycomb ceramics
200 & 400 CPSI Catalyst Carrier?

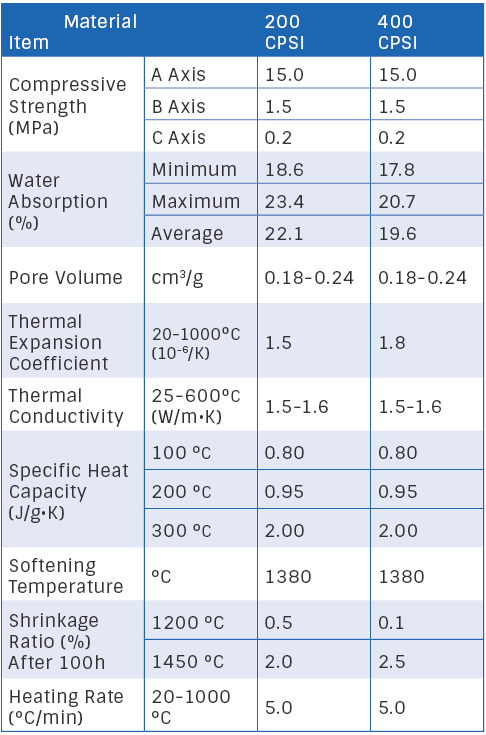

Physical Performance

Bulk Density

? 100 CPSI                                    – 0.46 g/cm 3 ±15%

? 200 CPSI                                       – 0.43 g/cm 3 ±15%

? 300 CPSI                                       – 0.50 g/cm 3 ±15%

? 400 CPSI                                  ?  – 0.48 g/cm 3 ±15%

Specification
We customize all products and materials to individual customer needs and specifications.
